Temperature Control Relay

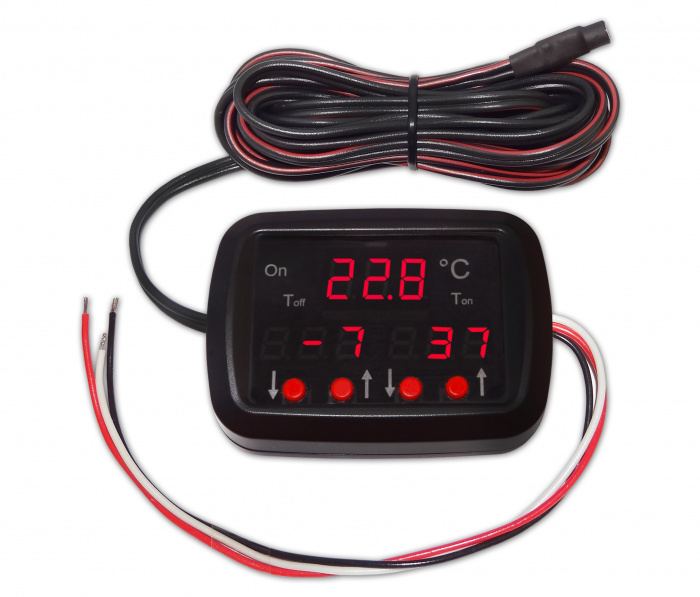

Temperature control relay 363.3787-01 is intended for circuit commutation as soon as ON/OFF temperature is reached. It is used in DC up to 30V and 25A current. ON/OFF temperature and hysteresis can be adjusted according to the requirements of the customer from -45°С to +125°С. Microprocessor temperature sensor with cables and connective five-contact socket is included in the set. This allows to install the relay in convenient place. Sensor location in the temperature control zone provides high precision of the relay switching. The relay is supplied with switching level necessary for the customer. One should confirm ON/OFF temperature at ordering. A special device for temperature adjustment can be supplied additionally. Thus adjustment can be done by two integrated multi-turn resistors . 363.3787-04 relay is a thermostat with current temperature indication. ON/OF temperature can be adjusted manually.
