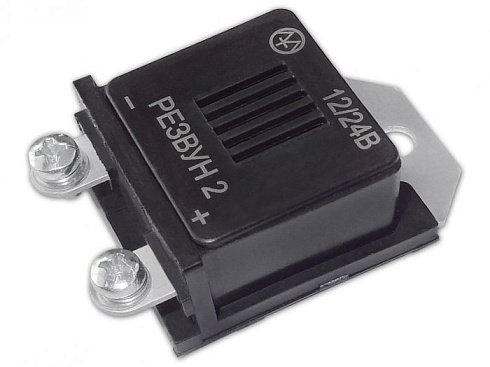

It is intended for operation in low-voltage DC circuits. It produces interrupted signal after power has been supplied.
It may be used as additional device warning with sound signal about reverse gear being switched ON. Application is universal for 12/24V cars and trucks.
It may be used as additional device warning with sound signal about reverse gear being switched ON. Application is universal for 12/24V cars and trucks.
Подробнее
Description
Installation
1 Install the relay near rear lights for better sound audibility.
2 Connect according to scheme1.
Note: In case the relay is installed with its opening on "ground" bolt connection of «+» clamps is only possible.
| Nominal Voltage, V | 10-30 |
| Supply Current, mA | 25 |
| Operation Time, s | Constantly |
| Application | 12V/24V cars and tracks |
| Type of the Sygnalling | Interrupted |
| Sound Level, dB/10sm | 90±5 |
|
Dimensions, mm |
65х41х23 |
|
Weight, g |
45 |
Characteristics
| Nominal Voltage, V | 12/24 |
| Supply Current, mА | 25 |
| Operation Time, s | constantlyп |
| Signal type | interrupted |
| Sound Level, dB/10 sm | 90±5 |
| Weight, g | 40 |
| Dimensions, mm | 65х41х23 |
