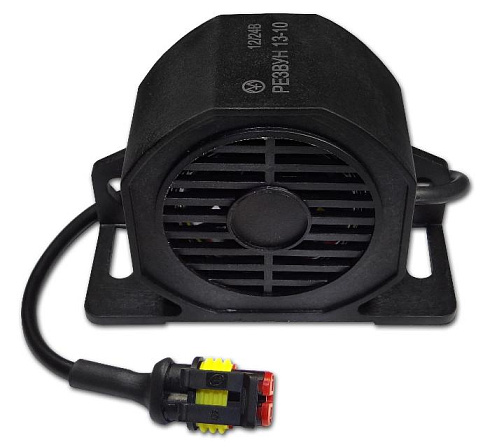

It is intended for operation in low-voltage DC circuits and produces a sound when the power is ON.
It may be used as additional device warning about vehicle moving back.
It is a waterproof sound transducer with two-pin AMP socket.
It may be used as additional device warning about vehicle moving back.
It is a waterproof sound transducer with two-pin AMP socket.
Подробнее
Description
Installation
1. Install indicator so that the pedestrians could hear it clearly.
2. Make electrical connection according to the scheme 1.
Use 2-pin waterproof AMP socket.
1. Install indicator so that the pedestrians could hear it clearly.
2. Make electrical connection according to the scheme 1.
Use 2-pin waterproof AMP socket.
Characteristics
| Supply Voltage, V | 12/24 |
| Consumption Current, not more, А | 0,025 |
| Signal type | interrupted |
| Sound Level,dB/m | 102±4 |
| Waterproof | IP67 |
| Weight, not more, g | 250 |
| Dimensions, mm | 102х69х40 |
