OPERATION AND INSTALLATION
1 Connection

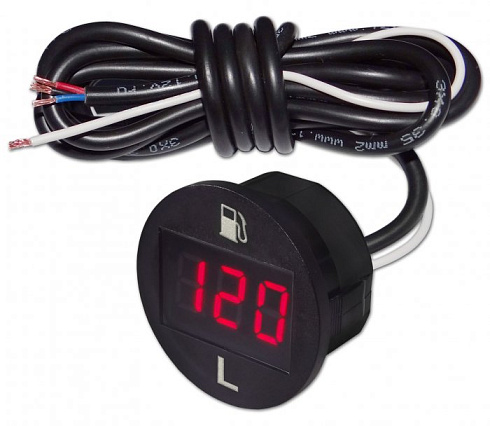

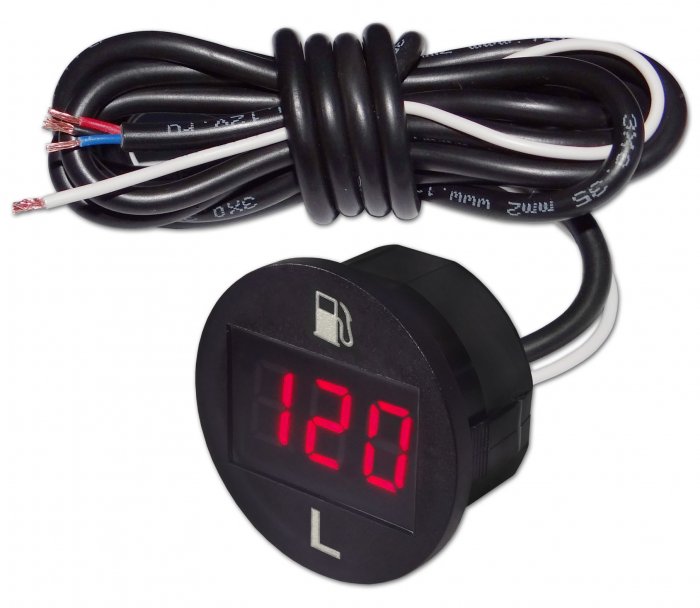

1.1. Choose convenient and visually controlled place for indicator installation (panel of 1...4mm thickness)
1.2. Perforate opening with 30...31 diameter and fix indicator case in it.
1.3. Switch the sensor OFF the regular measuring system.
1.4. Connect indicator connective wire according to the table 1:
Table 1
Wire cable | Application |
Red | “+” after ignition lock |
Black | “Mass” |
Blue | To level sensor (the second sensor wire connect with “mass”) |
2 Calibration
2.1. Prepare fuel as much as tank volume and additional container from 1 to 10 liters, 1 liter divisible.
2.2. Make car tank empty.
2.3. Car position should be horizontal.
2.4. Turn ignition lock ON (Do not start the engine).
2.5. Calibration is done by white wire closing with “mass”. Make calibration according to diagram (pict.1).
2.6. Insulate the white wire.
Note. It is recommended to connect the white wire with a button during calibration.
While car moving current fuel level will be blinking supposed fuel value is 5 liters and less to make signal for refuel necessity.
