OPERATION MANUAL
1 Adjustment
1.1. Extract a cap out of the relay case to reach the button.
1.2. Supply power on the relay (“31”- ‘’minus“, “15”-”plus”). The relay starts operation in preset operation mode.
1.3. Adjust relay parameters with the help of the button according to the diagram (Pict.3).
1.4. Place the cap back.
2 Connection
2.1. Connect the relay according to the scheme (Pict.1).
2.2. At the supplied power the relay starts operation in preset operation mode according to the diagram (Pict.2).

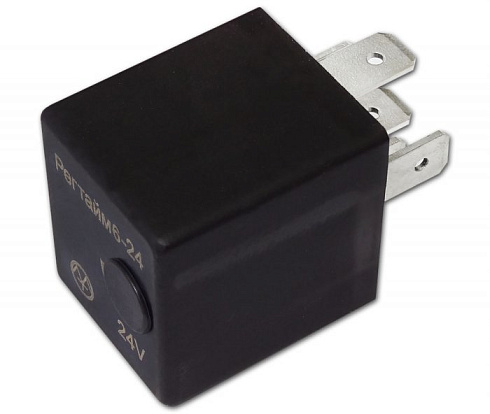

REGTIME6-24
The relay is intended for 24V DC commutation and is used for switching ON of additional devices according to diagram (Pict.2).
Choice of time unit (seconds, minutes, hours) is possible. Operation modes, time units, time duration may be programmed by the button through the opening in the relay case.
Installed LED and semi-transparent case provide visual control.
Application is universal.
Choice of time unit (seconds, minutes, hours) is possible. Operation modes, time units, time duration may be programmed by the button through the opening in the relay case.
Installed LED and semi-transparent case provide visual control.
Application is universal.
Подробнее
Description
Characteristics
Nominal Voltage, V | 24 |
Consumption Current, not more, А | 0,035 |
Switching current, no more, A | 20 |
Number of cycles T1/Т2 | (0-600)/∞ |
Operation time, T1 (T2), s/min/hour | 0-600 |
Weight, not more, g | 20 |
Dimensions, mm | 40х28х25 |
