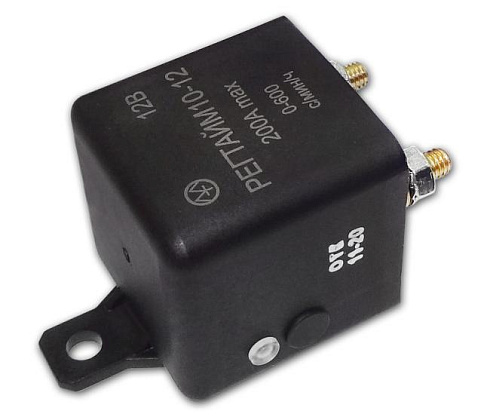

REGTIME10-12

The relay is intended for 12V DC commutation. It is used for turning the additional devices ON according to the diagrams (pict.2)
Choice of time unit (seconds, minutes, hours) is possible. Operation modes, time units, time duration may be programmed by the button through the opening in the relay case.
Installed LED and semi-transparent case provide visual control.
Application is universal.

Подробнее

Description

OPERATION MANUAL

1 Adjustment

1.1. Extract a cap out of the relay case to reach the button.
1.2. Supply power on the relay (“85”- ‘’minus“, “86”-”plus”). The relay starts operation in preset operation mode.
1.3. Adjust relay parameters with the help of the button according to the diagram (Pict.3).
1.4. Place the cap back..


2 Connection

2.1. Connect the relay according to the scheme (Pict.1).
2.2. At the supplied power the relay starts operation in preset operation mode according to the diagram (Pict.2).

Режимы работы Регтайм10-12_eng.jpg

Диаграмма настройки Regtaime10-12(eng).jpg

Characteristics

Nominal Voltage, V	12
Consumption Current, not more, А	0,55
Switching current, no more, A	200
Number of cycles T1/Т2	(0-600)/∞
Operation time, T1 (T2), s/min/hour	0-600
Waterproof	IP54
Weight, not more, g	100
Dimensions, mm	77х45х45

Documentation

REGTIME10-12

250.7 Кб
