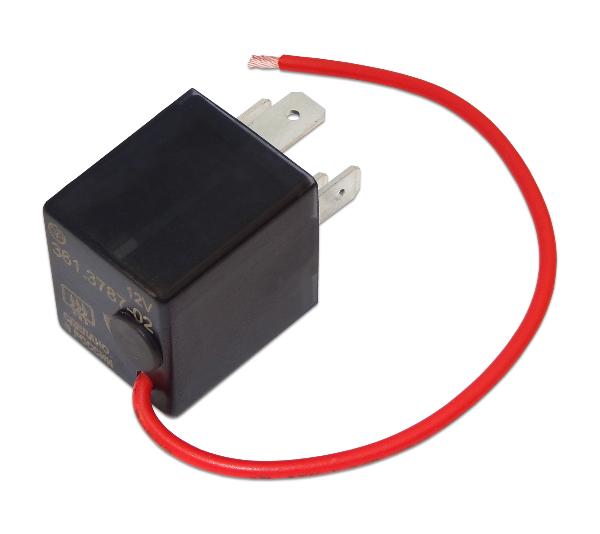

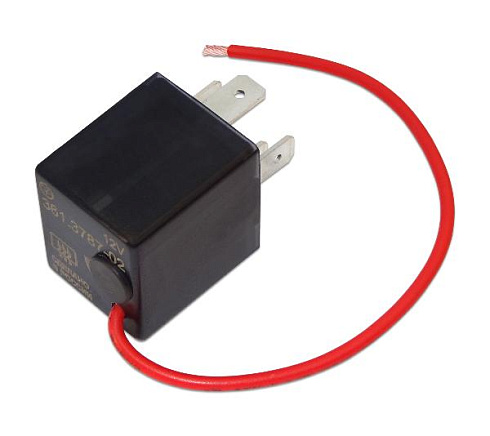

The relay is intended for turning ON rear window heating for a certain period of time.
It has timer inside. Operation time can be manually adjusted (1-30 minutes). Adjustment is done through multi-turn resistor. There is a LED for visual control.
Description
1 Installation
1.1 Place the relay into fuse/relay block instead of regular one. (of 90.3747-10 type) or mini-relay (of 98.3747-10 type). Use adaptor.
1.2 Connect the cable (coming from the case of the relay) with the electrical system in which showing "plus' after the ignition is ON by any convenient way (for example with the help of fuse splitter).
2 Operation
Relay starts operation after ingnition is ON. It is operated through the regular rear window heating button.
2.1 Heating and timer are ON after the button pressue. Manual OFF is done by repeated pressue. Включение обогрева стекла и запуск таймера выполняется нажатием кнопки.
2.2 Repeated ON is done:
2.2.1 By button pressue- in case non-fixed button is used.
2.2.2 B button release and pressue one more time-in case the button with fixation is used.
Relay should be adjusted before starting operation.
Characteristics
| Operation Voltage (DC), V | VAZ 2104-2115, Niva, Priora, Kalina (with adaptor), AZLK 2141, foreign cars and others with regular rear window heating relay (of 90.3747-10 type) in the regular fuse/relay block |
| Nominal Voltage, V | 12 |
| Maximum Current, А | 25 |
| Adjusting Resistor, rotations | 11 |
| Timer Operation Time, min | 1-30 |
| Weight, not more, g | 30 |
| Dimensions, mm | 40х28х25 |
