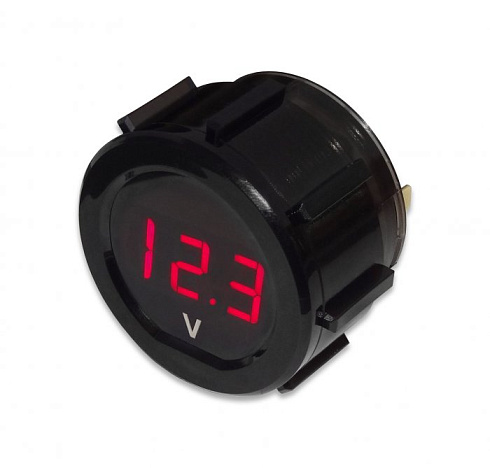

It is intended for digital voltage display in DC circuits.
Indicator has three-digital LED matrix of red color.
Indicator has three-digital LED matrix of red color.
Подробнее
Description
Installation
1. Place indicator in convenient and visually controlled place.
2. Make an opening with Ø52 and fix indicator case inside it using a nut.
3. Connect wires with indicator terminals, using 6.3 mm sockets.
Power supply minus to the “-” of indicator;
Power supply plus to the “+” of indicator;
Side lights plus to
of indicator.
Attention! Incorrect connection is prohibited!
| While installation of indicator the battery must be switched OFF! |
1. Place indicator in convenient and visually controlled place.
2. Make an opening with Ø52 and fix indicator case inside it using a nut.
3. Connect wires with indicator terminals, using 6.3 mm sockets.
Power supply minus to the “-” of indicator;
Power supply plus to the “+” of indicator;
Side lights plus to
of indicator.Attention! Incorrect connection is prohibited!
Characteristics
| Indication Range, V | 8-30 |
| Error, not more, V | 0,1 |
| Supply Voltage, V | 8-30 |
| Consumption Current, not more, А | 0,03 |
| Discreteness, V | 0,1 |
| Weight, not more, g | 65 |
| Dimensions, mm | Ø62х48 M52 |
