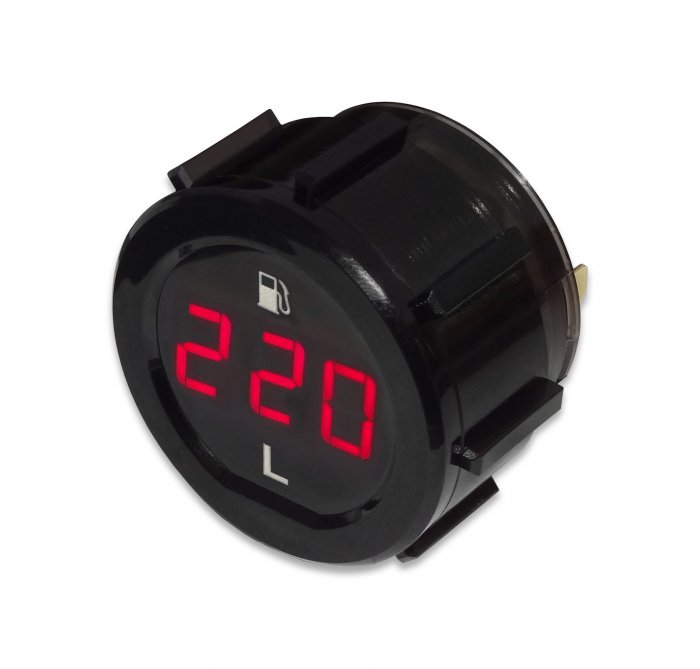

OPERATION AND INSTALLATION
1 Connection
Connect indicator when the battery is OFF! |
1. Choose convenient and visually controlled place for indicator installation.
2. Perforate opening with 30...31 diameter and fix indicator case in it using screw.
3. Connect wires to indicator terminals using size 6,3 sockets:
minus of power supply to “-” of indicator;
plus of power supply to “+” of indicator;
level sensor to “In” of indicator, the second level wire- to “mass”;
plus of side lights to of indicator.
Attention! Incorrect connection is prohibited.
2 Calibration
2.1. Prepare fuel as much as tank volume and additional container from 1 to 10 liters, 1 liter divisible.
2.2. Make car tank empty.
2.3. Car position should be horizontal.
2.4. Turn ignition lock ON (Do not start the engine).
2.5. Calibration is done by closing of clamp “Cal“ with “mass”. Make calibration according to diagram (pict.1).
2.6. Insulate the white wire.
Note. It is recommended to connect the white wire with a button during calibration.
While car moving current fuel level will be blinking supposed fuel value is 5 liters and less to make signal for refuel necessity.
