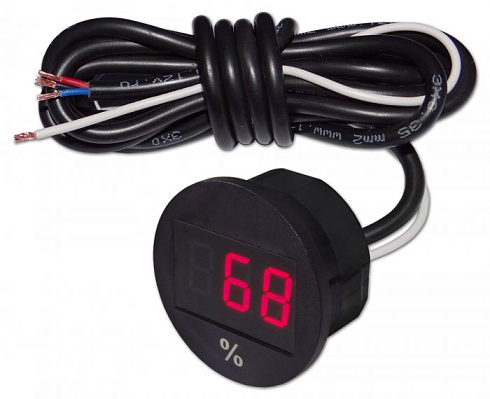

It is intended for digital display of coefficient of completion of pulse signal.
Indicator has three-digital LED matrix of red color and has option of pulse polarity choice.
Connective wires are included in the set.
Application is universal for 12/24V cars and trucks.
Indicator has three-digital LED matrix of red color and has option of pulse polarity choice.
Connective wires are included in the set.
Application is universal for 12/24V cars and trucks.
Подробнее
Description
Installation.
1. Choose convenient and visually controlled place for indicator installation (panel of 1...4mm thickness)
2. Perforate opening with 30...31 diameter and fix indicator case in it.
3. Connect indicator according to the table:
4. Turn ignition ON.
5. Turn load power ON.
6. Choose necessary mode of pulse polarity by closing the white wire with “mass” for a short time.
The chosen mode is saved in indicator memory.
| While installation of indicator the battery must be switched OFF! |
1. Choose convenient and visually controlled place for indicator installation (panel of 1...4mm thickness)
2. Perforate opening with 30...31 diameter and fix indicator case in it.
3. Connect indicator according to the table:
| Wire color | Application |
| Red | “+” after ignition lock |
| Black | “Mass” |
| Blue | to load |
4. Turn ignition ON.
5. Turn load power ON.
6. Choose necessary mode of pulse polarity by closing the white wire with “mass” for a short time.
The chosen mode is saved in indicator memory.
Characteristics
| Operation Voltage (DC), V | 8-30 |
| Indication Range, % | 0-100 |
| Error, not more, % | 1 |
| Consumption Current, not more, А | 0,03 |
| Discreteness, % | 1 |
| Min pulse duration, µs | 50 |
| Min signal frequency, Hertz | 15 |
| Set weight, g | 80 |
| Supply Cable, mm | 1500 |
| Dimensions, mm | Ø34х17 |
